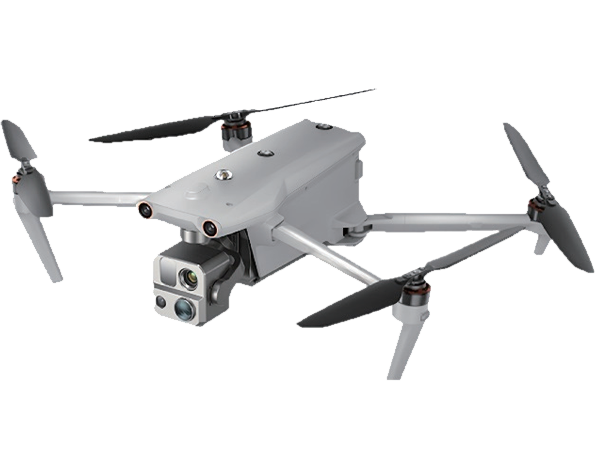

Rotor UAV MF1-4T
Rotor UAV MF1-4T
The MF1-4T features a robust propulsion system design, offering a flight time of up to 42 minutes. The flight platform boasts exceptional learning and computing capabilities, optimizing the flying experience.
Basic parameter
Dimensions Folded:257X145X131mm
Unfolded:562X651X147mm
Maximum Takeoff Weight 1,999g
Maximum Endurance 40 minutes (no wind)
Maximum Cruise Speed 20 m/s (no wind)
Practical Ceiling 4,000m
Wind Resistance 9 m/s during takeoff and landing
Visible Light Camera Image Sensor: 1/1.28-inch CMOS, 48 megapixels
Focal Length: 11.8-43.3 mm
160x hybrid zoom
Infrared Camera Measuring Range:high: -20℃~150℃;low:0℃~550℃
Temperature Measurement Accuracy: ±3℃ or ±3% of the reading(whichever is greater)@-20℃~60℃
Focal Length:13mm
Wide-Angle Camera Image Sensor: 1/1.28-inch CMOS, effective pixels: 50 megapixels
  Focal Length: 4.5 mm (Equivalent Focal Length: 23 mm)

Functional characteristics
  • 20 km clear image transmission.
  • Omnidirectional obstacle avoidance.
  • GPS interference resistance.
  • Precise navigation without GPS.
  • Accurate target identification and tracking.
