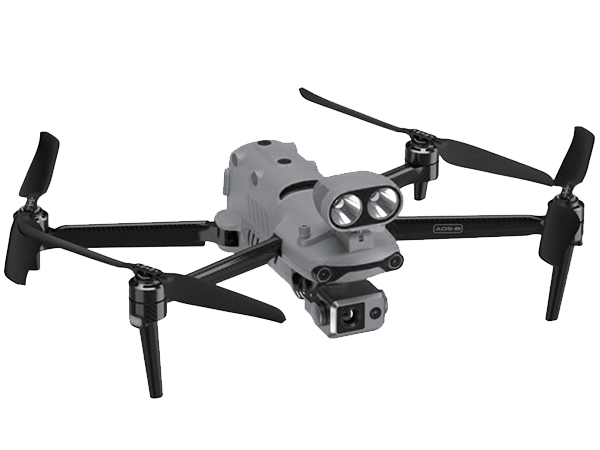

Rotor UAV MF1-2T

The MF1-2T combines a 50-megapixel high-sensitivity camera with an infrared thermal imager. This integration allows for effective merging of infrared thermal images and visible light images, providing clear visuals that facilitate quick problem identification. Additionally, the drone supports central, point, and area temperature measurement modes for comprehensive monitoring and analysis.

Basic parameter

Dimensions	Folded：230X130X108mm
Dimensions	Unfolded：457X558X108mm
Maximum Takeoff Weight	1,999g
Maximum Endurance Time	42 minutes (no wind)
Maximum Cruise Speed	20 m/s (no wind)
Practical Ceiling Altitude	7,000m
Operating Ambient Temperature	-10℃~40℃
RGB Camera Specs	Image Sensor: 1/1.28-inch CMOS, 50 megapixels
RGB Camera Specs	Zoom: 1-16x digital zoom
Infrared Camera Specs	Measuring Range：high: -20℃~150℃；low：0℃~550℃
	Temperature Measurement Accuracy: ±3℃ or ±3% of the reading（whichever is greater）@-20℃~60℃
	Zoom：1-16x（Max.4x lossless zoom）
Accessories	Navigation Light: Effective range: 5000m
	Megaphone: 120dB@1m; 88dB@60m; 70dB@110m
	Searchlight: FOV14°，Max.:11 lux@30m straight light

Functional characteristics

Omnidirectional Obstacle Avoidance: Enhances safety by detecting obstacles from all directions during flight.
Multiple Temperature Measurement Modes: Allows for flexible temperature assessments, including central, point, and area measurements.
Various Expandable Accessories: Provides adaptability to meet a wide range of application needs.
Monitoring System Receiver Module: Facilitates real-time monitoring and data collection during operations.
