Oblique Camera
Oblique Camera

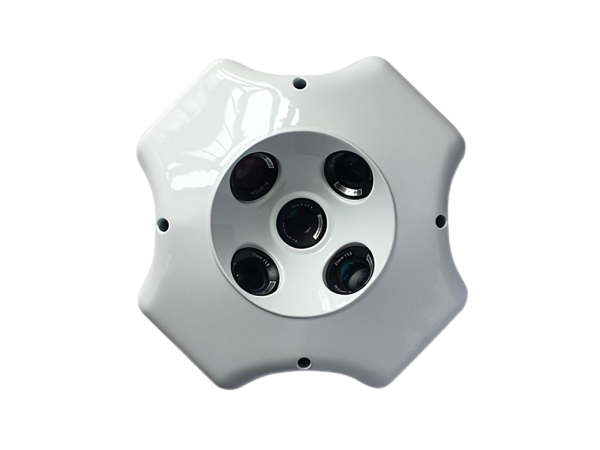

The professional oblique camera with five viewing angles can simultaneously capture images from nadir, front oblique, rear oblique, left oblique, and right oblique directions. Oblique photography technology enables comprehensive, multidimensional reconstruction of ground targets, generating highly realistic and detailed accurate 3D models.
Basic parameter
Photography Features
Effective Pixels Single lens larger than 45 million pixels, total lens larger than 225 million pixels
Sensor Size 36*24mm (full frame)
Pixel Size 4.4μm
Image Size 8192*5460px
Lens Focal Length 56mm fixed focus length for oblique, 40mm for nadir
ISO Range 50-1600
Shutter Speed 1/500,1/640,1/800,1/1000,1/1250
Aperture Size Fixed at F5.6
Other Features
Shutter Life S-GS global shutter, shutter life of 500,000 times
Storage Data Photos/POS files with GPS information and camera parameter information
Parameter Adjustment Supports modifications to ISO, white balance, color mode, shutter speed, etc.
Operating Modes K-control / equidistant / equitemporal trigger
Stabilization System 3-axis (pitch, roll, yaw)
Camera Power Supply External power supply DC12-50V
Protection Grade IP5X
