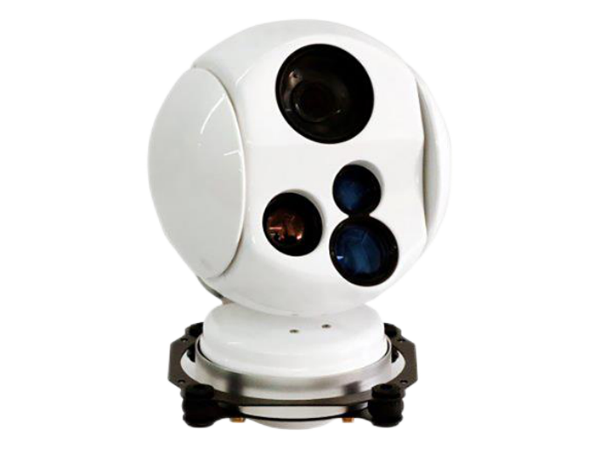

Triple-Sensor Pod
Triple-Sensor Pod
The triple-sensor pod utilizes a three-axis stabilization platform with a conductive slip ring, enabling 360° continuous rotation. It has a 30x high-definition visible light camera, a long-wave uncooled infrared imager, and a laser component. This pod facilitates ground imaging, detection, identification, and tracking by drones, meeting the requirements for video reconnaissance, surveillance, and inspection.
Basic parameter
Visible Light Camera
Sensor Starlight CMOS sensor
Image Quality FHD,1080p(1920X1080)@30
Zoom Optical 30x
Aperture F=1.6~4.7
Focal Length F=4.3mm~129mm
Field of View 63.7°~2.3°
Infrared Imager
Type Uncooled long wave (8μm~14μm)
Pixel 640X512
Pixel Size 14μm
Laser Component
Range 3.5m~800m
Resolution 0.1m
Measurement Accuracy 1m
Intelligent Locking
Target Size 10x10 pixels
Minimum Tracking Contrast 0.05
OSD Supports OSD with character and reticle overlay
