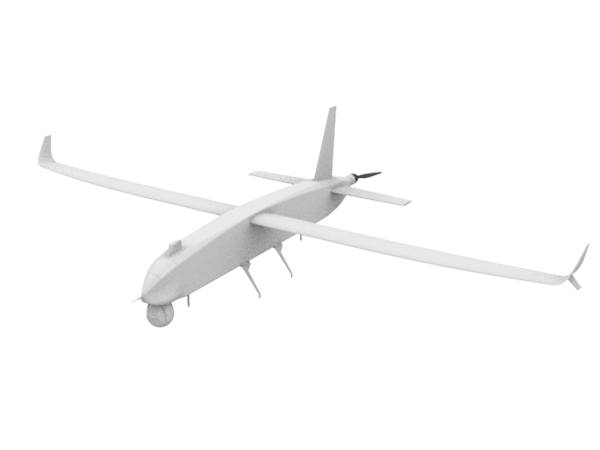

eVTOL Fixed-Wing UAV VF-36
eVTOL Fixed-Wing UAV VF-36
The VF-36 drone boasts a maximum flight speed of 130 km/h, a loaded endurance time of 4.5 hours, and an unloaded range of 500 km, supporting 100 km of wireless image transmission. It can be equipped with various payload devices tailored to specific application scenarios, such as an electro-optical pod, an electronic airdrop device, a synthetic aperture radar, and a multispectral imager. Additionally, the drone features a system self-diagnostic function alongside the capability to automatically return home in the event of signal loss, ensuring reliable and safe operations.
Basic parameter
Wingspan 3950mm
Length 2360mm
Packaging Dimensions 202X65X75cm
Maximum Takeoff Weight 36kg
Maximum Payload Capacity 10kg
Endurance Time 270 min (light breeze, an altitude of 20m, 1.5kg payload)
Maximum Cruise Speed 130km/h(36.1m/s)
Economical Cruise Speed 85km/h(23.6m/s)
Practical Ceiling Altitude 6000m
Range of Data Link 30/50/100km (optional)
Remote Control and Image Transmission Delay ≤200ms
Wind Resistance Takeoff and Landing: ≥10.8 m/s
Operating Ambient Temperature -20℃~55℃
Rainproof Rating Light rain

Functional characteristics
  • Safety Features: Landing even if one propeller stops working, supporting system self-checks, nearby emergency landing, alternative landing field, and automatic return on low battery.
  • Hovering: Hovering temporarily in cruise mode to execute tasks.
  • Intelligent Flight Path Planning: One-click takeoff and landing, flight path planning, real-time adjustments, and return to the original path.
  • Flexible Payload Options: Flexible selection of mounted equipment based on application scenarios to meet specific operational needs.
