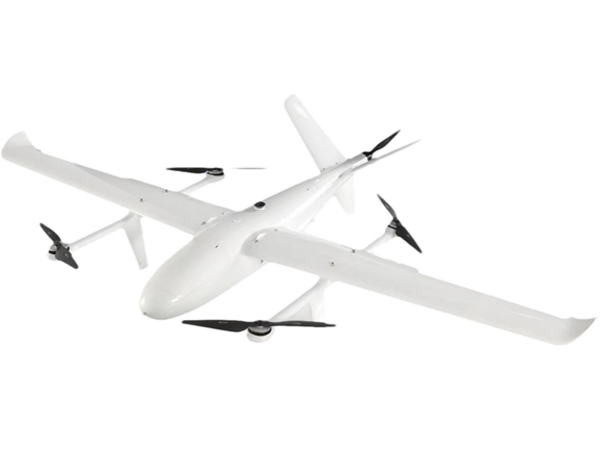

VTOL Fixed-Wing UAV VF-35
VTOL Fixed-Wing UAV VF-35
Powered by electric energy, the VF-35 features rotors driven by four T-MOTOR MN series motors, complemented by T-MOTOR Flame high-voltage electronic speed controllers for optimal performance. During cruise mode it is powered by a single T-MOTOR AT series motor, paired with a T high-voltage electronic speed controller, ensuring reliable and efficient flight capabilities.
Basic parameter
Overall Dimensions 3.5x1.88x0.64m
Maximum Takeoff Weight 35KG
Maximum Payload Capacity 10KG
Unloaded Endurance Time 190min
Cruise Speed 21m/s
Maximum Takeoff Altitude 4200m
Wind Resistance 10.8 m/s in rotor mode and 13.9 m/s in fixed-wing mode
Protection Rating IP54
Packaging Dimensions 2105mm*735mm*500mm
