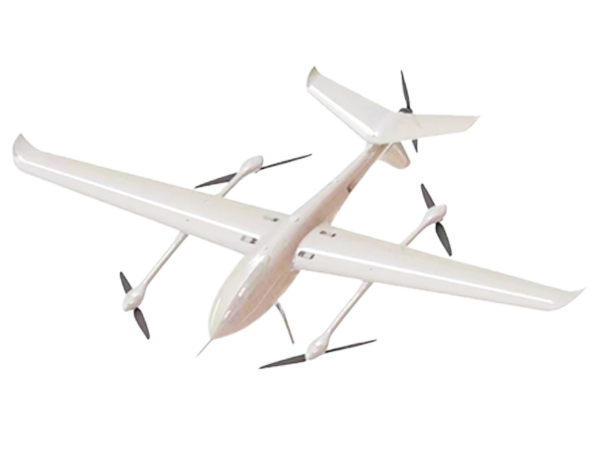

eVTOL Fixed-Wing UAV VF-24

En

ES

Product

Home VTOL Fixed-Wing VF SerieseVTOL Fixed-Wing UAV VF-24

The VF-24 drone, powered by lithium batteries, boasts a maximum takeoff weight of 24 kg and a payload capacity of 5 kg, with an impressive flight duration of over 200 minutes. Capable of transmitting images over distances of up to 50 km, this versatile drone is ideal for a wide range of applications, including surveying and inspection, oil and power industries, police patrols, and emergency rescue operations. Its robust design allows it to operate effectively in high-altitude and low-temperature environments, making it a reliable choice for challenging conditions.

Basic parameter

Wingspan	3200mm
Length	1260mm
Maximum Takeoff Weight	24kg
Maximum Payload Capacity	5kg
Endurance Time	228 minutes (1 kg payload); 108 minutes (5 kg payload)
Maximum Cruise Speed	93.6km/h（26m/s）
Economical Cruise Speed	72km/h（20m/s）
Maximum Climb Rate	≥4m/s
Maximum Descent Rate	≥4m/s
Practical Ceiling	5000m
Packaging Dimensions	1806750cm
Range of Data Link	30/50/100km (optional)
Remote Control and Image Transmission Delay	≤200ms
Wind Resistance	Takeoff and Landing: ≥5.5 m/s Cruise: ≥10.8 m/s
Operating Ambient Temperature	-20℃~45℃
Rainproof Rating	Light rain

Functional characteristics

Image Transmission: 100km wireless image transmission through 4G/5G and wireless signals, ensuring clear and smooth image return to on-site and remote locations.
Safety Features: Multi-redundancy design, including system self-check, nearby emergency landing, and abnormality warning.
Smart Flight Path Planning: One-click flight path planning, real-time adjustments, and return via the original path.
Ground Control: Control by dedicated remote controllers and ground terminal devices, enabling manual/automatic flight switching and payload control.
